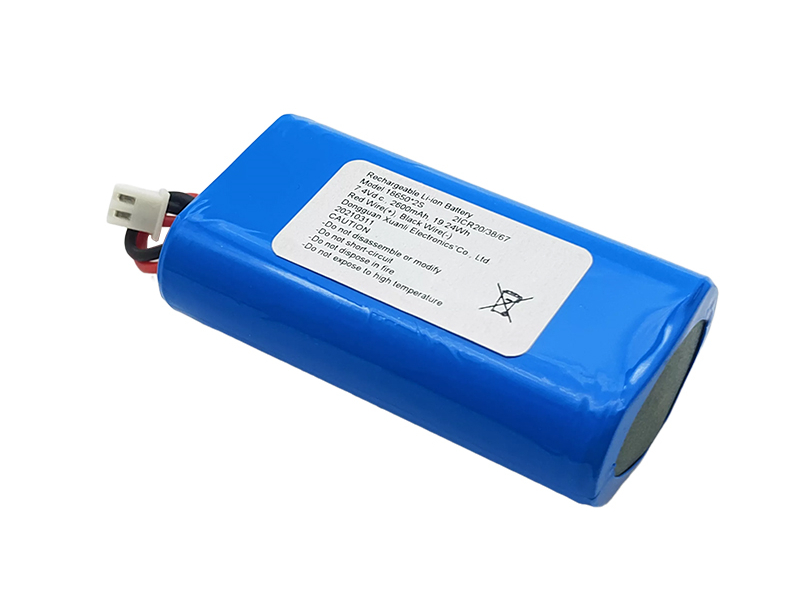

7.4V cylindrical lithium battery product model: XL 7.4V 2600mAh
7.4V cylinder lithium battery technical parameters (specific design according to customer requirements - voltage / capacity / size / line)
Single battery model: 18650
·Voltage of single cell: 3.7V
·Nominal voltage after battery pack combination: 7.4V
·Capacity of single battery: 2.6Ah
·Battery combination mode: 2 strings 1 parallel
·Voltage range of battery after combination: 6.0~8.4V
·Battery capacity after combination: 2.6Ah
·Battery pack power: 19.24Wh
·Battery pack size: 20 * 39 * 67mm
·Maximum discharge current: < 2.6A
·Instantaneous discharge current: 5~7A
·Maximum charging current: 0.2~0.5C
·Charging and discharging times: ＞ 500 times
·Main chips: (Seiko, Ti)
7.4V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
